Car Turntable Cost
-
-
TURN TABLE
- Direction Turning Device
- Major Result View
| Type | ST-40A | ST-45A |
| Possible Loading Car Type | Middle, Small-Sized Cars | Large-Sized Cars |
| How to Operate | Push Button Switch | |

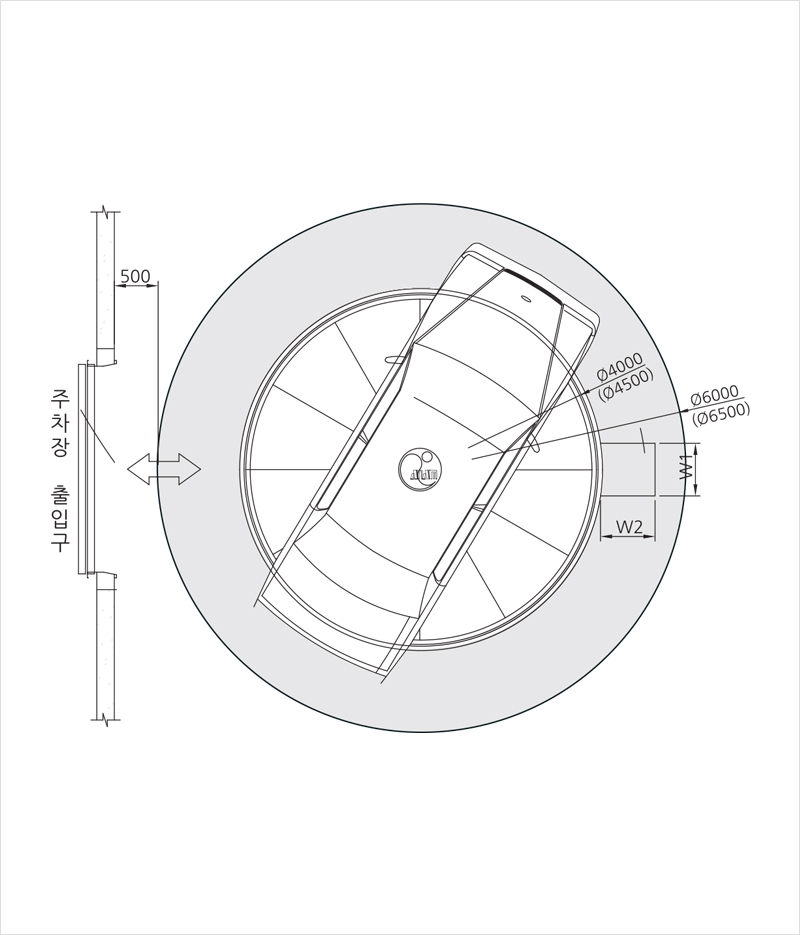

| Table Diameter | 4,000mm | 4,500mm |
| Possible Loading Weight | 2,000kg | 2,500kg |
| Rotation | Speed | 1.5rpm/50Hz, 1.8rpm/60Hz |
| Method | Righteousness Revolution, Reverse Revolution | |
| Normal Angle | 90°, 180° | |
| Electric Motor | 0.75kw | |
| Possible Loading Weight | AC220/380V, 3phase | |
-
